| Brand Name: | Chitherm |
| Model Number: | MBF40-11N |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Customized |
| Payment Terms: | Customized |
| Attribute | Value |
|---|---|
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
| Atmosphere | Air/Nitrogen |
| Effective Chamber Dimensions | 330*200*660mm (W*H*D) |
| Thermocouple Type | N |
| Transport Package | Wooden Packaging |
| Specification | 1150*1970*1460mm (W*H*D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Supply Ability | 50 Sets/Year |
| Customization | Available |
| Certification | ISO |
| Place Style | Vertical |

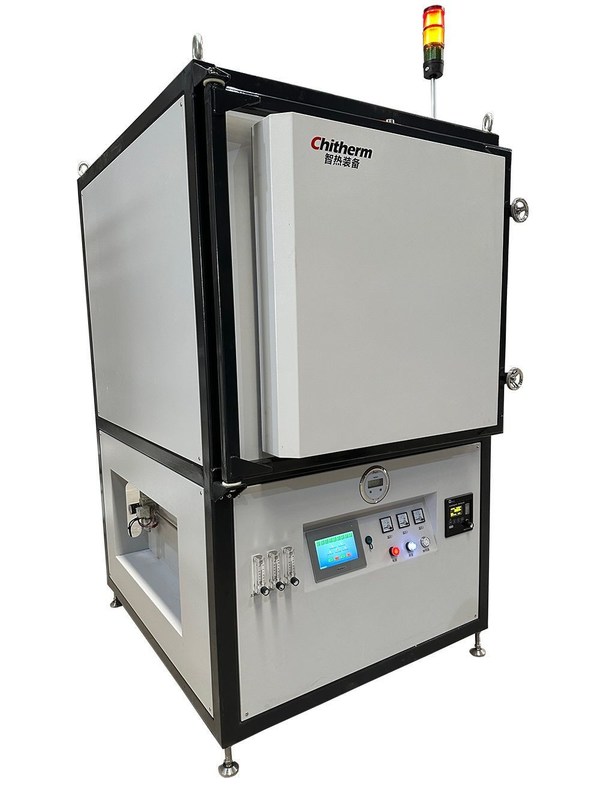

Vertical High Temperature Industrial Furnace 1150°C MBF40-11N Type Atmosphere Box Furnace with ISO Certification, designed for precision industrial sintering processes.
Primarily used for sintering lithium battery cathode and anode materials, with additional applications in:
| Item | Note | Quantity |
|---|---|---|
| Basic Compositions | Furnace | 1 Unit |
| Certificates | Furnace and major components | 1 Set |
| Technical Documents | Specifications and component details | 1 Set |
| Heating Elements | Ceramic tube-encased silicon carbide rod | 1 Set |
| Temperature Controller | Azbil | 1 Set |
| Touch Screen | 1 Set | |
| Spare Parts | Silicon carbide rod | 2 PC |
