| Brand Name: | Chitherm |
| Model Number: | HWF160-10NH |
| Attribute | Value |
|---|---|
| Model NO. | HWF160-10NH |
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
| Atmosphere | Vacuum/Nitrogen/Hydrogen |
| Effective Chamber Dimensions | 500×500×650mm (W×H×D) |
| Thermcouple | Type K |
| Max Temp | 1100°C |
| Transport Package | Wooden Packaging |
| Specification | 1650×1950×2000mm (W×H×D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Supply Ability | 50 Sets/Year |

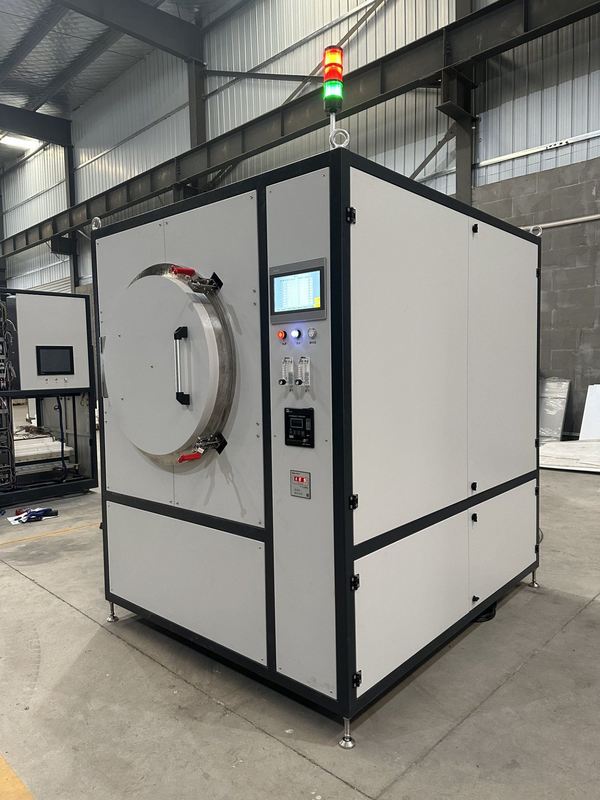

This industrial vacuum furnace is designed for soldering metal parts and HTCC packaging, with additional capabilities for decarburization, annealing, quenching, scorching, hardening, and thermal decomposition processes.
| Item | Description | Quantity |
|---|---|---|
| Basic Components | Furnace unit | 1 SET |
| Inspection Certificate | Certificate of major outsourced components | 1 SET |
| Technical Documents | Instructions and technical specifications | 1 SET |
| Key Components | Heating element, vacuum system, touch screen, temperature controller | 1 SET each |
| Spare Parts | SSR, sealing ring | 1 PC each |
We provide high-quality industrial furnaces including bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
We offer expert consultation services to help select the most suitable products and provide highly customizable solutions to meet specific industrial requirements.
As a high-tech enterprise with patented technologies, we integrate R&D, manufacturing, and sales to deliver superior thermal processing solutions.
