| Brand Name: | Chitherm |
| Model Number: | MBF40-11N |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Customized |
| Payment Terms: | Customized |
| Attribute | Value |
|---|---|
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
| Atmosphere | Air |
| Effective Chamber Dimensions | 330*200*660mm (W*H*D) |
| Transport Package | Wooden Packaging |
| Specification | 1150*1970*1460mm (W*H*D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Production Capacity | 50 Sets/Year |

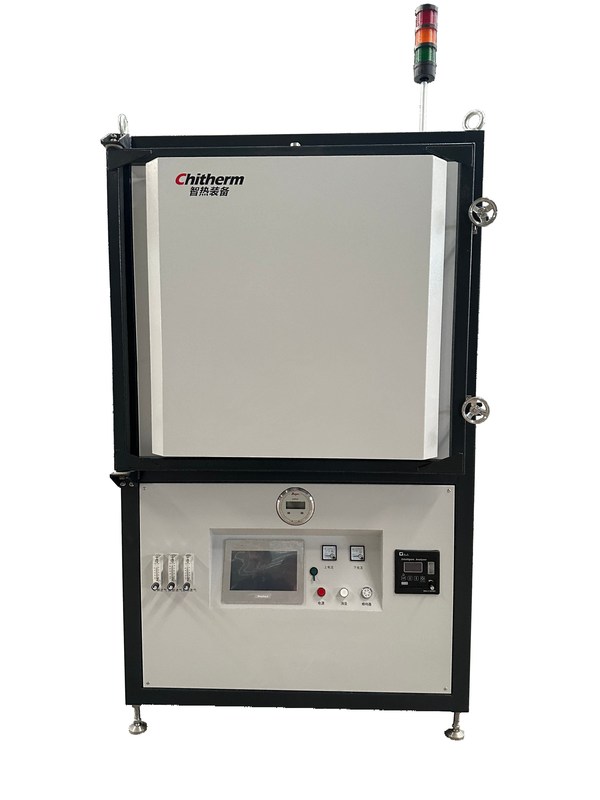

Chitherm MBF40-11N with effective chamber dimensions of 330×200×660mm (W×H×D)
Primarily designed for electronic components and ceramic filters in high temperature binder burn-off and sintering processes.
| Item | Note | Quantity |
|---|---|---|
| Basic Compositions | Furnace | 1 PC |
| Certificates of Inspection | Furnace and major components | 1 Set |
| Technical Documents | Specifications and component documentation | 1 Set |
| Heating Elements | SiC Rods | 1 Set |
| Thermocouple | WATLOW/THERMOWAY, Type N | 1 PC |
| Temperature Controller | Azbil | 1 Set |
| Monitor | Proface touch screen | 1 Set |
| SSR (Spare) | 1 PC |
