| Brand Name: | Chitherm |
| Model Number: | MBF60-10 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Customized |
| Payment Terms: | Customized |
| Attribute | Value |
|---|---|
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
| Atmosphere | Air |
| Effective Chamber Dimensions | 350*300*550mm (W*H*D) |
| Transport Package | Wooden Packaging |
| Specification | 860*1750*1220mm |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Production Capacity | 50 Sets/Year |

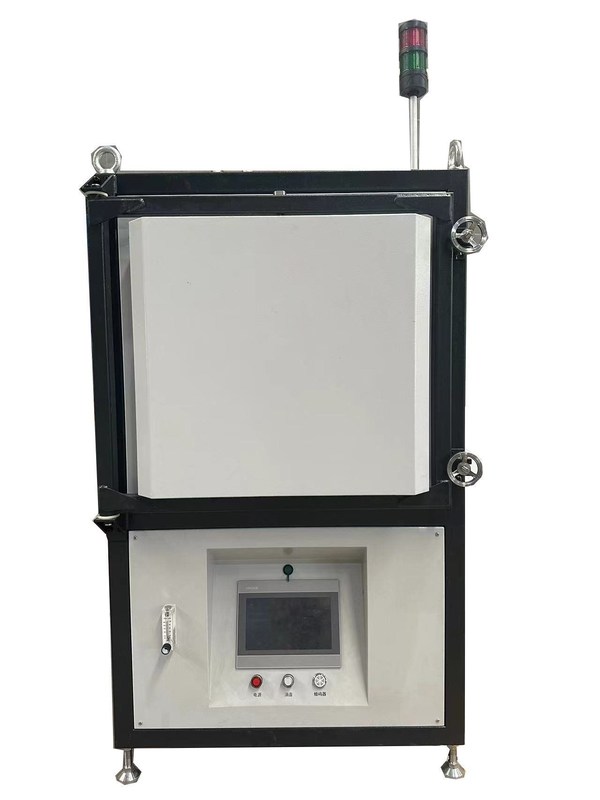

Air Atmosphere 860*1750*1220mm Chitherm MBF60-10 Sintering Box Furnace for Industrial Applications
Primarily used for electronic components and ceramic filters in high temperature binder burn-off and sintering processes.
| Item | Note | QTY |
|---|---|---|
| Basic Compositions | ||
| Furnace | 1 PC | |
| Certificates of Inspection | Furnace and major purchased components | 1 Set |
| Technical Documents | Furnace specifications, technical documents of major components | 1 Set |
| Key Parts | ||
| Heating Elements | Heating Plate with resistance alloy wires | 1 Set |
| Thermocouple | WATLOW/THERMOWAY, Type K | 1 PC |
| Temperature Controller | CHINO | 1 Set |
| Monitor | Proface 8" touch screen | 1 Set |
| Spares | ||
| SSR | 1 PC | |
Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance.
Clean, dry, oil-free compressed air, pressure 0.2 - 0.4Mpa, gas consumption 3 - 6m³/h.
Non-contact access to user pumping system with capacity greater than 10m³/h.
Level surface, no significant vibration, bearing capacity > 250Kg/m².
Capacity greater than 22kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz (according to local standards).
Minimum space requirements: 1800mm×1850mm×3000mm (W×H×D), installation area greater than 3.5m².
