| Brand Name: | Chitherm |
| Model Number: | Hrf800-06NO |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Customized |
| Payment Terms: | Customized |
| Attribute | Value |
|---|---|
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Drying |
| Fuel | Electric |
| Atmosphere | Nitrogen |
| Effective Chamber Dimensions | 800*1000*1000mm(W*H*D) |
| Transport Package | Wooden Packaging |
| Specification | 1500*1630*1350mm(W*H*D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Supply Ability | 50 Sets/Year |
| Customization | Available |
| Certification | ISO |
| Place Style | Vertical |

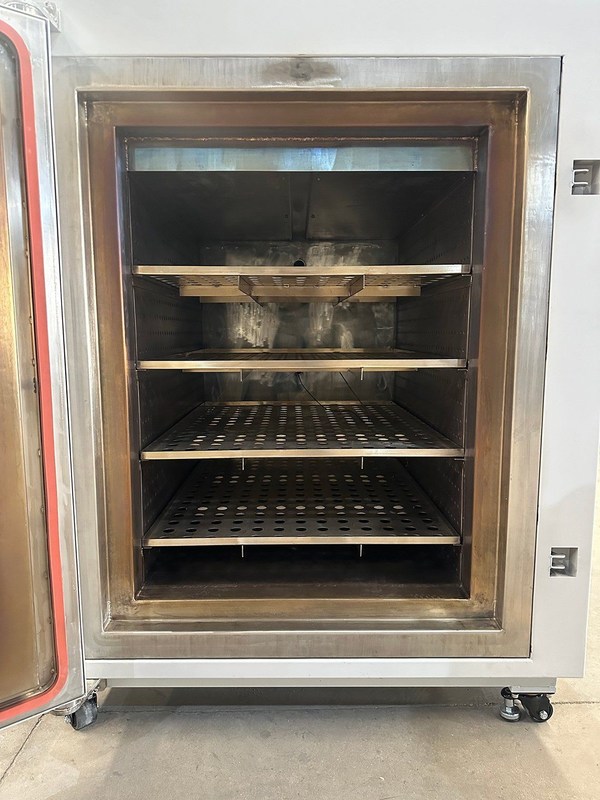

The HRF800-06NO hot air debinding furnace is engineered for precision drying, curing, and debinding processes in semiconductor and electronic component manufacturing. Featuring advanced temperature control and robust construction, this industrial furnace delivers consistent performance for critical applications.
| Category | Component | Specification | Quantity |
|---|---|---|---|
| Basic Components | Furnace Main Unit | 1 set | |
| Electric Purification Furnace | Max. capacity 50m³ | 1 set | |
| Inspection Certificate | Component certificates | 1 set | |
| Technical Documentation | Manuals and technical files | 1 set | |
| Critical Components | Heater | Squirrel-Cage Type | 1 set |
| Control Thermocouple | Type K | 1 pc | |
| Measurement Thermocouple | Type K | 1 pc | |
| Monitoring Thermocouples | Type K | 5 pcs | |
| Temperature Control Module | Japan-sourced | 1 set | |
| PLC | Siemens | 1 set | |
| UPS | 1kVA | 1 set | |
| Touch Screen | 10-inch | 1 set | |
| Oxygen Analyzer | CI-PC96 | 1 set | |
| Circulation Fan | Max. airflow 5000m³/h | 1 set | |
| Chiller Unit | 0.5m³/h | 1 set | |
| Spare Parts (Solid State Relay, Heater) | 2 pcs | ||
Environmental Conditions: Temperature 0-40ºC, Humidity ≤80% RH, non-corrosive environment
Gas Requirements: Clean, dry nitrogen (99.999% purity), 0.2-0.4 MPa pressure
Power Supply: >40 kVA capacity, 3-phase 5-wire (380V, 50Hz)
Space Requirements: Minimum 6 m² area, 600 kg/m² load capacity
