| Brand Name: | Chitherm |
| Model Number: | MBF20-11N |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Customized |
| Payment Terms: | Customized |
| Attribute | Value |
|---|---|
| Range of Applications | Industrial |

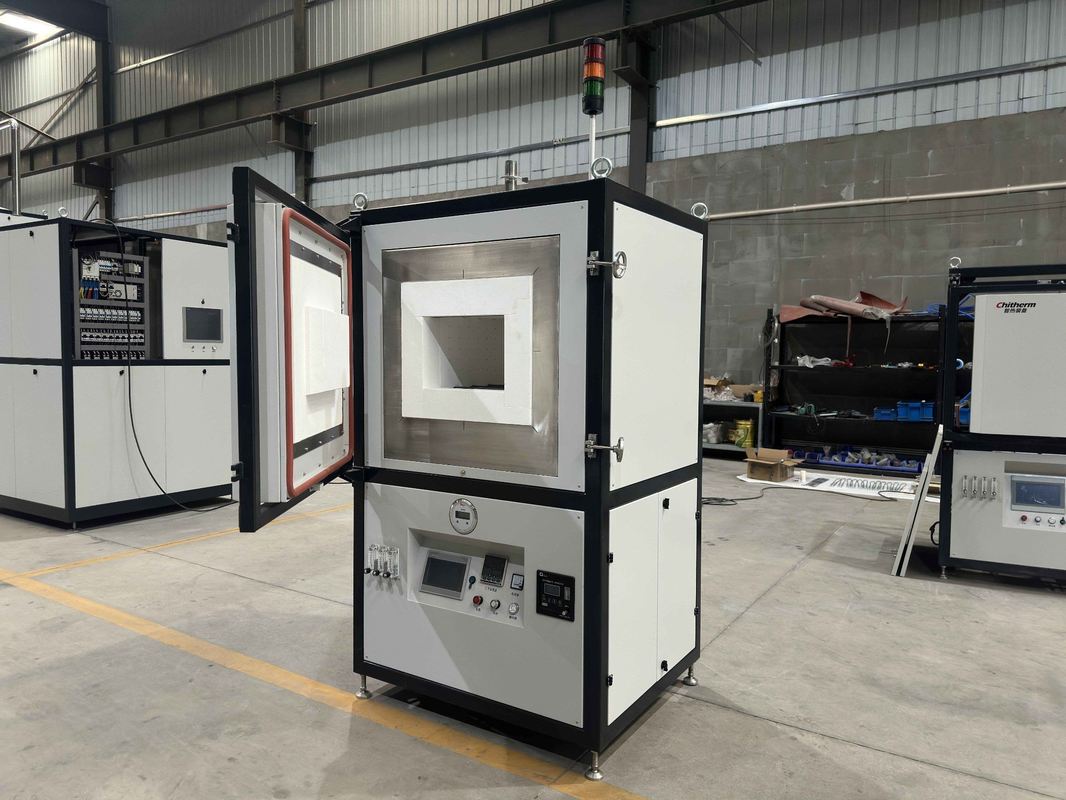

| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
| Atmosphere | Nitrogen/Air |
| Effective Chamber Dimensions | 330*200*330mm(W*H*D) |
| Transport Package | Wooden Packaging |
| Specification | 1300*1900*1160mm(W*H*D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Production Capacity | 50 Sets/Year |
Applications:
Mainly used for electronic components, ceramic filters in high temperature binder burn off and sintering process.
Main Specifications:
| Rated Temp. | 1000ºC |
| Max Temp. | 1100ºC |
| Effective Dimensions | 330 × 200 × 330mm(W×H×D) |
| Heating Method | SiC Rods |
| Process Atmosphere | Nitrogen |
| Temperature Control Stability | ±1ºC, with PID parameter self-tuning function |
| Temperature Uniformity | better than ±5ºC (insulation 2 hours at 1000ºC test) |
| Thermocouple | Type N |
| Temperature control points | 3 points |
| Temperature measurement points | 1 point |
| Process Steps | 4×16 steps |
| Oxygen Content | ≤ 20ppm+gas supply oxygen content |
| Exhaust | One exhaust port with manual adjustment |
| Max Heating Power | 12kW |
| Insulation Power | ≤ 5kW |
| Surface Temperature Rise | ≤ 35ºC |
Delivery List
| Item | Note | QTY |
| Basic Compositions | Furnace | 1 PC |
| Certificates of Inspection | Furnace and major purchased components | 1 Set |
| Technical Documents | Furnace specifications, technical documents of major purchased components, etc | 1 Set |
| Key Parts | Heating Elements | SiC Rods | 1 Set |
| Thermocouple | WATLOW/THERMOWAY, Type N | 1 PC |
| Temperature Controller | Azbil | 1 Set |
| Monitor | Proface touch screen | 1 Set |
| Spares | SSR | 1 PC |
Facility Requirements
Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
