| Brand Name: | Chitherm |
| Model Number: | Hrf800-06NO |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Customized |
| Payment Terms: | Customized |
| Attribute | Value |
|---|---|
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Fuel | Electric |
| Atmosphere | Nitrogen |
| Effective Chamber Dimensions | 800*1000*1000mm(W*H*D) |
| Transport Package | Wooden Packaging |
| Specification | 1500*1630*1350mm(W*H*D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Supply Ability | 50 Sets/Year |
| Customization | Available |
| Certification | ISO |
| Place Style | Vertical |

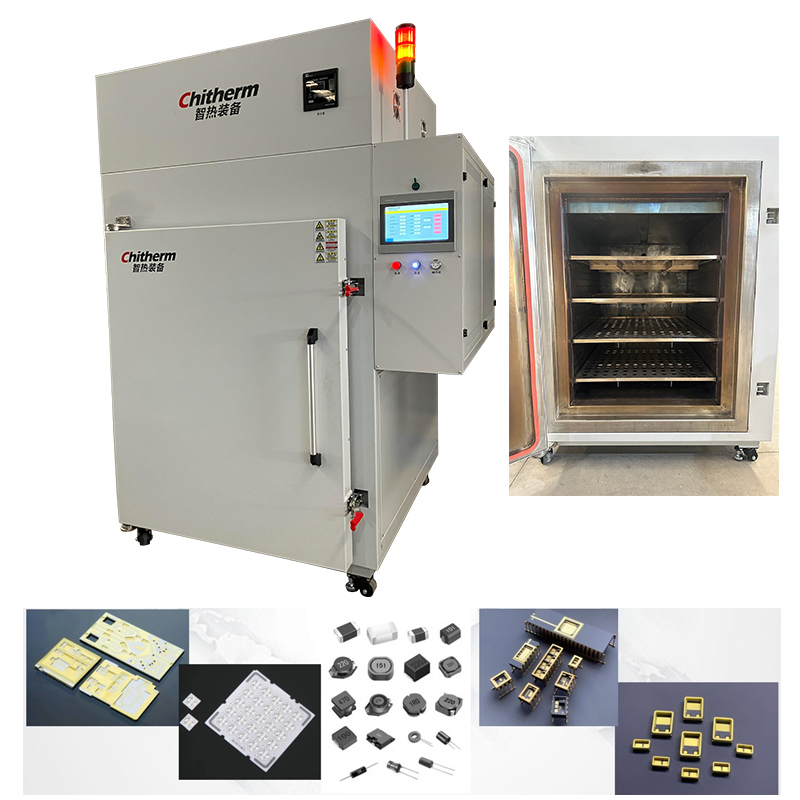

Nitrogen Atmosphere Hot Air Drying Furnace HRF800-06NO for Industrial Range of Applications and Performance
Widely used for debinding processes of ceramic substrates and related materials.
| Name | Key Contents | Qty |
|---|---|---|
| Basic Components | ||
| Furnace Main Unit | 1 set | |
| Electric Purification Furnace | Max. capacity 50m³ | 1 set |
| Inspection Certificate | Certificates of major purchased components | 1 set |
| Technical Documentation | Manuals, technical files for purchased parts | 1 set |
| Critical Components | ||
| Heater | Squirrel-Cage Type | 1 set |
| Control Thermocouple | Type K | 1 pc |
| Measurement Thermocouple | Type K | 1 pc |
| Monitoring Thermocouples | Type K | 5 pcs |
| Temperature Control Module | Japan-sourced | 1 set |
| PLC | Siemens | 1 set |
| UPS | 1kVA | 1 set |
| Touch Screen | 10-inch | 1 set |
| Oxygen Analyzer | CI-PC96 | 1 set |
| Circulation Fan | Max. airflow 5000m³/h | 1 set |
| Chiller Unit | 0.5m³/h | 1 set |
| Spare Parts | ||
| Solid State Relay | 1 pc | |
| Heater | 1 pc | |
Hefei Chitherm Equipment Co., Ltd. is a professional enterprise engaged in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces.
Our products include Bell Furnaces, Box Furnaces, Hot Air Dryer, Tube Furnaces, Vacuum Furnaces, Trolley Furnaces, and Rotary Furnaces. All of which are widely used in scientific research and experimentation in advanced ceramics, additive manufacturing, powder metallurgy, new energy and other fields. Suitable for the extrusion, sintering process of magnetic materials, honeycomb ceramics, alumina ceramics, zirconia ceramics, CIM/MIM, and positive and negative electrode materials of lithium batteries, as well as various other new materials such as pre-firing, extrusion, degreasing, firing, drying, co-firing, post-firing, soldering, curing, ceramic metallization, etc.
We insist responsible attitude towards customers and provide high-quality products and services. It is precisely because of the support, understanding, and trust of our customers and friends that our intelligent equipment manufacturing capabilities continue to improve. We are willing to work with customers to support the rapid development of electronics and advance materials all over the world.
We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
