Hot Air Drying Oven
Created with Pixso. 4kW Industrial Vacuum Hot Air Drying Oven Customized for Decarburisation

4kW Industrial Vacuum Hot Air Drying Oven Customized for Decarburisation

Brand Name: Chitherm
Model Number: SZC-180
MOQ: 1
Price: Negotiable
Delivery Time: Customized
Payment Terms: Customized
Detail Information
Place of Origin:
China
Range Of Applications:
Industrial
Type:
Electric Holding Furnace
Usage:
Drying
Fuel:
Electric
Atmosphere:
Air
Effective Chamber Dimensions:
600*500*600mm(W*H*D)
Transport Package:
Wooden Packaging
Specification:
1440*1930*1080mm(W*H*D)
Trademark:
Chitherm
Origin:
China
HS Code:
8514101000
Supply Ability:
50 Sets/Year
Customization:
Available
Certification:
ISO
Place Style:
Vertical
Packaging Details:
Customized
Supply Ability:
Customized
Highlight:

4kW Hot Air Drying Oven

,

Decarburisation Hot Air Drying Oven

,

4kW industrial vacuum oven

Product Description
4kW Industrial Vacuum Hot Air Drying Oven Customized for Decarburisation
Product Specifications
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Drying
Fuel Electric
Atmosphere Air
Effective Chamber Dimensions 600*500*600mm (W*H*D)
Transport Package Wooden Packaging
Specification 1440*1930*1080mm (W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Product Description
SZC-180 Hot Air Drying Oven Maximum Temperature 200°C Customizable for Customer Requirements
Technical Specifications:
  • Equipment Model: SZC-180 Type Clean Drying Oven
  • Maximum Temperature: 150°C, Operating Temperature: 85 - 150°C
  • Oven Dimensions: 900mm × 650mm × 1150mm (L × W × H)
  • Chamber Dimensions: 600mm × 500mm × 600mm (L × W × H)
  • Design Power: 4 kW
  • Electrical Supply: 220V, 50Hz
  • Construction Material: Mirror Stainless Steel
  • Heating Element: High-quality heating wire, lightweight fiber material with low thermal capacity, excellent insulation properties, fast heating, energy-saving, time-saving, and easy environmental temperature control
  • Insulation Material: Aluminum Silicate Fiber Blanket
  • Control Method: Imported single-loop intelligent temperature controller with PID control, auto-tuning of parameters
  • Number of Temperature Control Zones: 1
  • Alarm Protection: Over-temperature, circulating fan failure, etc., with audio-visual alarm protection and automatic power cutoff
  • Temperature Uniformity: ≤±2

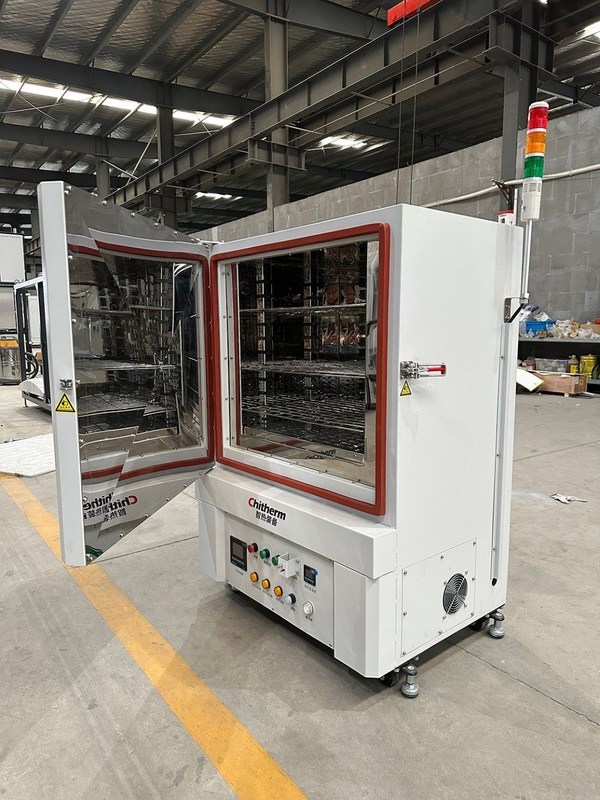

4kW Industrial Vacuum Hot Air Drying Oven Customized for Decarburisation 0 4kW Industrial Vacuum Hot Air Drying Oven Customized for Decarburisation 1
Facility Requirements
  • Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance
  • Ventilation system: Non-contact connection to the user's exhaust system, with an exhaust capacity greater than 20 m³/h
  • Floor: Level, without significant vibration, load-bearing capacity > 500 Kg
  • Power conditions: Capacity greater than 6 KVA, three-phase five-wire, voltage 220/380V, frequency 50Hz
  • Installation site: 1800×1200mm×1500mm (L×W×H), installation area greater than 2 m²
