| Brand Name: | Chitherm |
| Model Number: | BF150-17 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Customized |
| Payment Terms: | Customized |
| Attribute | Value |
|---|---|
| Maximum Temperature | 1700°C |
| HS Code | 8514101000 |
| Supply Ability | 50 Sets/Year |
| Customization | Available |
| Place Style | Vertical |
| Model | BF150-17 |

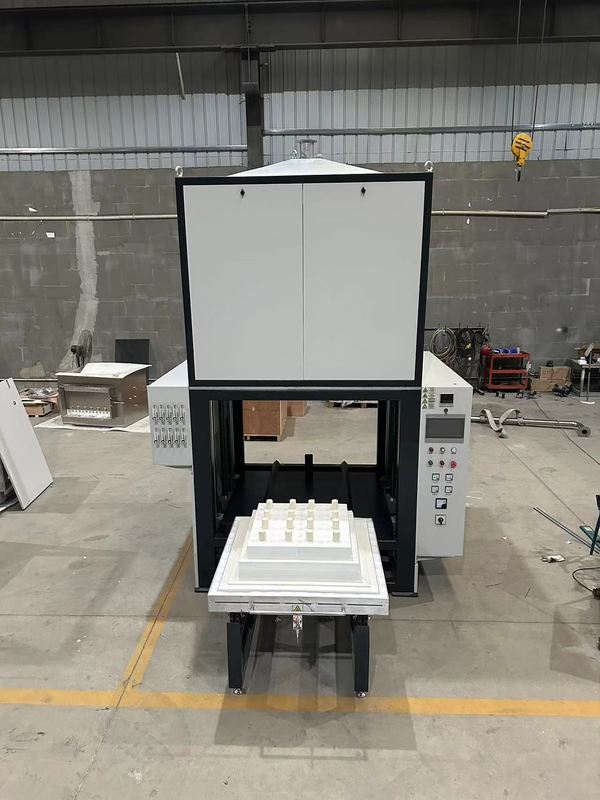

This precision furnace is engineered for processing electronic ceramics, magnetic materials, and ceramic filters requiring exceptional temperature uniformity and small-batch production capabilities.
| Temperature Range | 1650°C (rated) / 1700°C (max) |
| Working Dimensions | 550×500×550mm (D×W×H) |
| Heating System | U-shaped silicon molybdenum heating elements |
| Temperature Control | Single-point monitoring with ±1°C accuracy |
| Heat-up Rate | ≤5°C/min (400-1000°C) / ≤2°C/min (1000-1500°C) |
| Temperature Uniformity | ±5°C (1500°C, 2hr test) |
| Power Requirements | 70kVA, 3-phase 380V/50Hz |
| Exhaust System | Single top-mounted chimney |
| Thermal Efficiency | ≤25kW insulation power |
