| Brand Name: | Chitherm |
| Model Number: | BF1500-15O |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Customized |
| Payment Terms: | Customized |
| Range of Applications | Industrial |

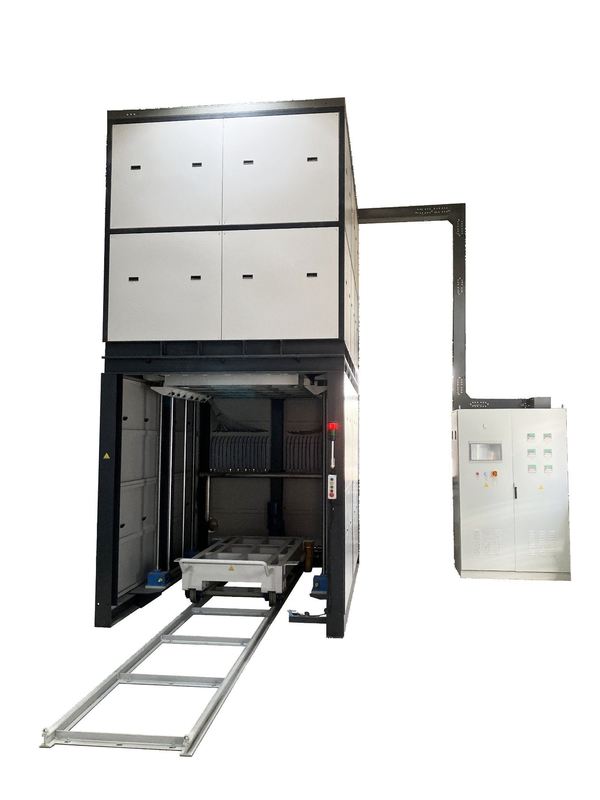

| Type | Electric Holding Furnace |
| Usage | Ceramic Sintering |
| Fuel | Electric |
| Atmosphere | Air |
| Effective Chamber Dimensions | 1600*1250*800mm(D*W*H) |
| Transport Package | Wooden Packaging |
| Specification | 3280*4600*2240mm(W*H*D) |
| HS Code | 8514101000 |
| Production Capacity | 50 Sets/Year |
| Rated Temp. | 1400ºC |
| Max Temp. | 1500ºC |
| Effective Dimensions | 1600mm×1250mm×800mm(D×W×H) |
| Heating Method | U-shaped silicon molybdenum heater |
| Thermcouple | Type S |
| Temperature Control | 6 Points |
| Temp. Set Accuracy | ±1ºC(flat temp. insulation) |
| Temp. Control Mode | control module imported from Japan with PID |
| Heat-up Rate | ≤2.5ºC/min |
| Temp. Uniformity | ± 5ºC (empty furnace insulation test 2hours under 1400ºC) |
| Program Tracking Accuracy | ±2ºC (>600ºC) |
| Maximum Lifting Trip | 800mm |
| Lift System | Three-point control, can be stopped at any time, with stable and reliable operation |
| Atmosphere Control | Four channels of air inlet, each channel controlled by glass rotor flowmeter (12-120L/min) |
| Exhaust System | 2 exhaust chimneys with auto switch function |
| Alarm System | Over-temperature, broken couple, overload, over-range, deviation sound and light alarm protection |
| External Dimensions | 3280×4600×2240mm(D×W×H) (without control cabinet) |
| Item | Note | Qty. |
|---|---|---|
| Basic Components | Furnace | 1 SET |
| Inspection Certificates | Certificates of major outsourced components | 1 SET |
| Technical Documents | Instructions, technical documents of the major outsourced parts | 1 SET |
| Control Cabinet | 1000×2000×600mm(W×H×D) | 1 SET |
| Key Components | Heating Plate (U-shaped silicon molybdenum heater) | 1 SET |
| Flow Meter | TOFCO | 1 SET |
| Thermocouple | THERMOWAY | 1 SET |
| Lifting System | 1 SET | |
| Temperature Control Module | Azbil | 1 SET |
| PLC | SIEMENS | 1 SET |
| Touch Screen | MCGS | 1 SET |
| Spare Parts | Heating Element (U-shaped silicon molybdenum heater) | 1 PC |
