High Temp Bell Elevator Furnace For Air Nitrogen Atmosphere Custom

Brand Name: Chitherm
Model Number: Bf260-16
MOQ: 1
Price: Negotiable
Delivery Time: Customized
Payment Terms: Customized
Detail Information
Place of Origin:
China
Range Of Applications:
Industrial
Type:
Electric Holding Furnace
Usage:
Ceramic Sintering
Fuel:
Electric
Atmosphere:
Air
Effective Chamber Dimensions:
720*500*720mm(D*W*H)
Transport Package:
Wooden Packaging
Specification:
1950*3600*3100mm(W*H*D)
Trademark:
Chitherm
Origin:
China
HS Code:
8514101000
Supply Ability:
50 Sets/Year
Customization:
Available
Certification:
ISO
Place Style:
Vertical
Packaging Details:
Customized
Supply Ability:
Customized
Highlight:

High Temp Elevator Furnace

,

Nitrogen Atmosphere Elevator Furnace

,

custom nitrogen atmosphere furnace

Product Description
High Temp Bell Elevator Furnace For Air Nitrogen Atmosphere Custom
Product Specifications
Range of Applications
Industrial
Type
Electric Holding Furnace
Usage
Ceramic Sintering
Fuel
Electric
Atmosphere
Air
Effective Chamber Dimensions
720*500*720mm(D*W*H)
Transport Package
Wooden Packaging
Specification
1950*3600*3100mm(W*H*D)
Trademark
Chitherm
Origin
China
HS Code
8514101000
Supply Ability
50 Sets/Year
Customization
Available
Certification
ISO
Place Style
Vertical
Product Description

Electric Chitherm Bf260-16 High Temp. Bell Furnace for Air Atmosphere and Electric Fuel at High Temperature

Applications

Widely used in the adhesive sintering process of zirconia ceramics, magnetic materials, electronic ceramic components and other products.

Technical Specifications
  • Rated Temp.: 1500ºC
  • Max Temp.: 1600ºC
  • Effective Dimensions: 720mm*500mm*720mm(D*W*H)
  • Heating Method: MoSi2 heating element
  • Thermcouple: B-Type
  • Temperature Control: 1 Point
  • Temp. Set Accuracy: ±1ºC(flat temp. insulation)
  • Temp. Control Mode: The Japanese Daiwa Chino Programmable Temperature Controller features PID auto-tuning functionality.
  • Temp. Uniformity: ± 5ºC (empty furnace insulation test 2hours under 1500ºC)
  • Maximum Heating Power: 85kW
  • Insulation Power: ≤40kW
  • Program Control: SCR Control Module
  • Lifting Mechanism: Lead Screw Drive Elevation System
  • Control Method: Phase Angle Control
  • Operating Atmosphere: Air
  • Exhaust System: Top-mounted exhaust stack for effluent discharge
  • Protection Functions: Audible & visual alarm system for over-temperature, motor overload, and over-travel conditions
  • External Dimensions: 1950*3600*3100mm(D*W*H) (without control cabinet)
  • Appearance Color: Light gray

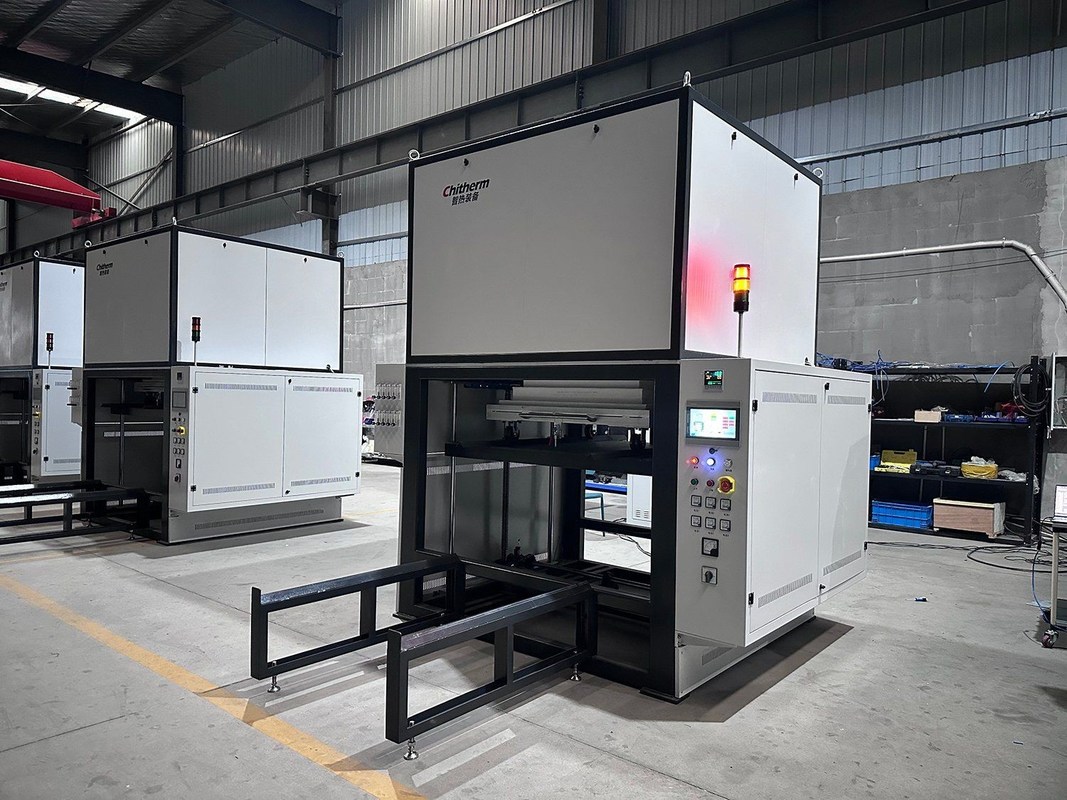

High Temp Bell Elevator Furnace For Air Nitrogen Atmosphere Custom 0
Delivery List
Item Note Qty.
Basic Components Furnace 1 SET
Inspection Certificates Certificates of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Control Cabinet 1000*2000*600mm(W*H*D) 1 SET
Key Components Silicon molybdenum rod 1 SET
Thermocouple B-Type 1 SET
Temperature controller Japanese Daiwa Chino 1 SET
Spare Parts Heating Element - Silicon molybdenum rod 1 PC
Equipment Normal Operating Conditions
  • Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance
  • Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2-0.4MPa, gas consumption of 10 - 30 m3/h
  • Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 30 m3/h
  • Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 Kg/m2
  • Power Condition(TBD): capacity > 120kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green
  • Installation Site: 4000mm*3500mm*4000mm(D*W*H), with an installation area greater than 14m2
