| Brand Name: | Chitherm |
| Model Number: | HBF300 - 13 |
| MOQ: | 1 |
| Price: | 31200 |
| Delivery Time: | 60-90 work days |
| Payment Terms: | L/C,T/T |

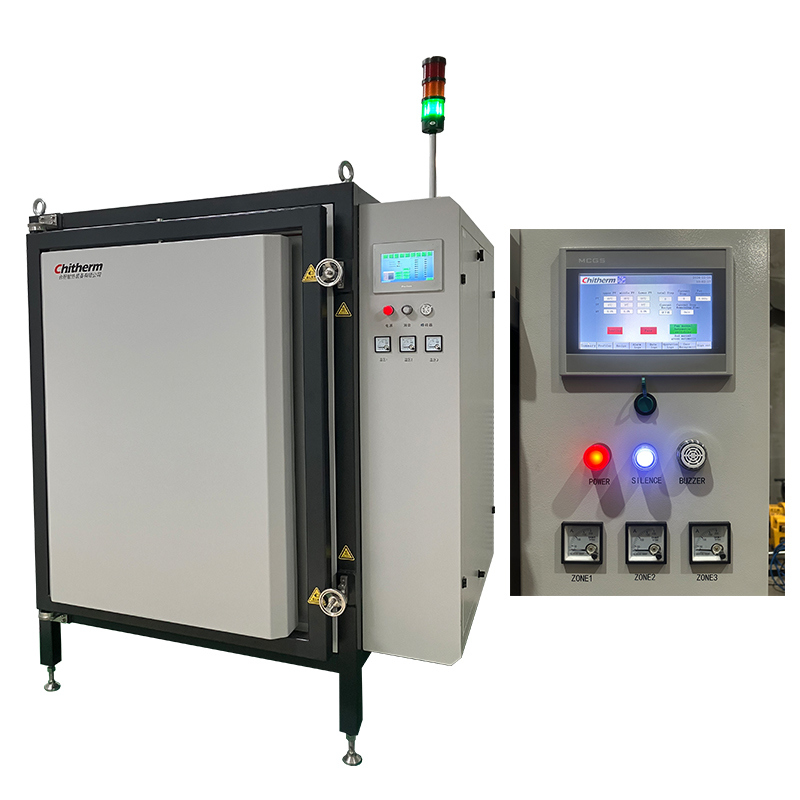

The HBF300-13 high-temperature box furnace is engineered for precision steel molding and heat treatment applications in industrial and laboratory settings. Featuring advanced silicon carbide heating elements and three-zone temperature control, this electric furnace delivers uniform heat distribution up to 1300°C with exceptional stability.
| Attribute | Specification |
|---|---|
| Model Number | HBF300-13 |
| Chamber Dimensions (W×H×D) | 560×780×700mm |
| Effective Working Space | 400×600×550mm |
| Temperature Range | 1250°C (rated) / 1300°C (max) |
| Heating Elements | Silicon carbide rods in ceramic tubes |
| Power Requirements | >90kVA, 3-phase 220V/380V, 50Hz |
| Cooling System | Natural cooling + forced blower |
| Component | Description | Quantity |
|---|---|---|
| Kiln Main Unit | Complete furnace assembly | 1 Unit |
| Temperature Control System | Yamatake module with touchscreen | 1 Set |
| Heating Elements | Silicon carbide rods | 3 Zones |
| Thermocouples | Type S precision sensors | 3 Pieces |
| Spare Parts Kit | Includes 2 spare silicon carbide rods | 1 Set |
The HBF300-13 furnace is securely packaged in wooden crates for international shipping. Each unit includes complete documentation including inspection certificates, technical manuals, and warranty information.
Production capacity: 50 units/year. Standard lead time: 4-6 weeks after order confirmation.
