Industrial Sintering Furnace
Created with Pixso. 850kg High Temperature Box Furnace MCGS Touchscreen High Temperature Box Furnace

850kg High Temperature Box Furnace MCGS Touchscreen High Temperature Box Furnace

Brand Name: Chitherm
Model Number: HBF52-17O
MOQ: 1
Price: Negotiation
Delivery Time: 90 work days
Payment Terms: T/T,L/C
Detail Information
Place of Origin:
China
Packaging Details:
Specification 1770*2150*1250mm(W*H*D)Wooden Packaging
Supply Ability:
50 Sets/Year
Highlight:

850kg High Temperature Box Furnace

,

MCGS Touchscreen High Temperature Box Furnace

Product Description
850kg High Temperature Box Furnace MCGS Touchscreen High Temperature Box Furnace
Technical Specifications
Dimensions
  • Overall dimensions: 1130×1945×1149 mm (W×H×D)
  • Effective heating zone dimensions: 350×300×500 mm (W×H×D)
Temperature Performance
  • Rated temperature: 1650°C
  • Maximum temperature: 1700°C
Heating System
  • Heating elements: U-shaped silicon molybdenum rods
  • Number of temperature zones: 1
  • Maximum heating power: ≤25 kW
Operating Environment
  • Working atmosphere: Air or oxygen
  • Cooling method: Natural cooling with the furnace
Power Requirements
  • Power supply: ≥34 kVA, three-phase five-wire system (220V/380V, 50Hz)
A dedicated power line is required; avoid sharing circuits with high-power equipment (e.g., welding machines).
Gas Supply Requirements
  • Air: Clean, dry, oil-free compressed air
  • Oxygen: High-purity oxygen, consumption rate 2~6 m³/h
Control System
  • Upper computer: MCGS touchscreen (configuration software, user-friendly interface)
  • Lower computer: Azbil C1A series temperature controller + Siemens PLC
  • Features: High real-time performance, excellent stability, supports temperature data acquisition and parameter settings
Installation Requirements
Environmental Requirements
  • Installation location: Indoors, ambient temperature 0°C-40°C
  • Prohibited environments: No flammable, corrosive gases, or vapors
Space Requirements
  • Floor area: ≥5 m²
  • Working space: Length ≥2.5 m, width ≥2 m, height ≥3 m
  • Foundation: Sturdy and level
  • Equipment weight: Approx. 850 kg
Power and Grounding
  • Must be reliably grounded, using a dedicated three-phase five-wire power supply (380±10%V, 50±2%Hz)
Gas Supply Pressure
  • Inlet pressure: 0.2-0.4 MPa
Safety & Maintenance
Safety: High-temperature equipment must be properly grounded to prevent electrical hazards; operators must wear protective gear.
  • Maintenance: Regularly inspect heating elements, gas supply pipelines, and control system status
  • Atmosphere Control: Ensure oxygen purity when in use to avoid contamination or explosion risks
Product Images

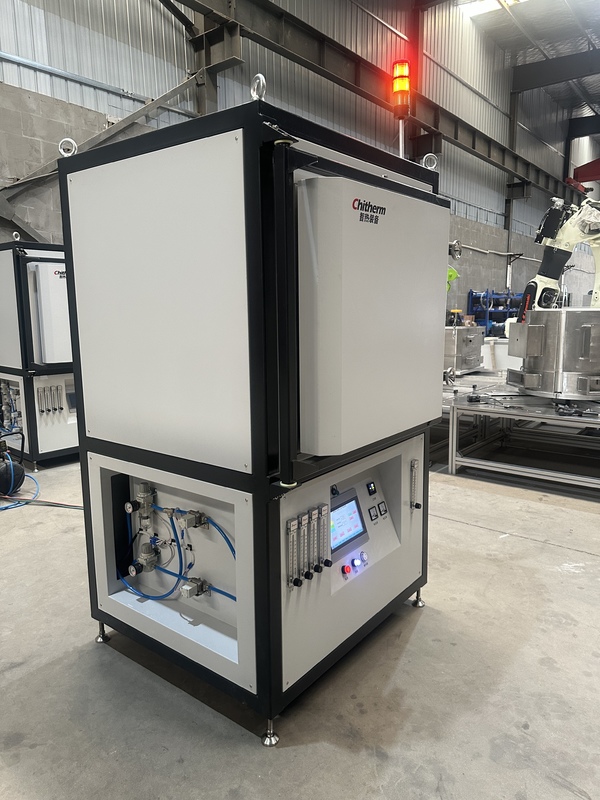

850kg High Temperature Box Furnace MCGS Touchscreen High Temperature Box Furnace 0
850kg High Temperature Box Furnace MCGS Touchscreen High Temperature Box Furnace 1
Delivery Contents
Item Note QTY
Basic Compositions
Furnace 1 PC
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components, etc 1 Set
Key Parts
Heating Elements MoSi2 1 Set
Thermocouple THERMOWAY, B Type 1 PC
Temperature Controller CHINO 1 Set
Monitor Proface 10" touch screen 1 Set
Spares
Heating Elements MoSi2 1 PC
Certifications
850kg High Temperature Box Furnace MCGS Touchscreen High Temperature Box Furnace 2
Packaging & Shipping
850kg High Temperature Box Furnace MCGS Touchscreen High Temperature Box Furnace 3
