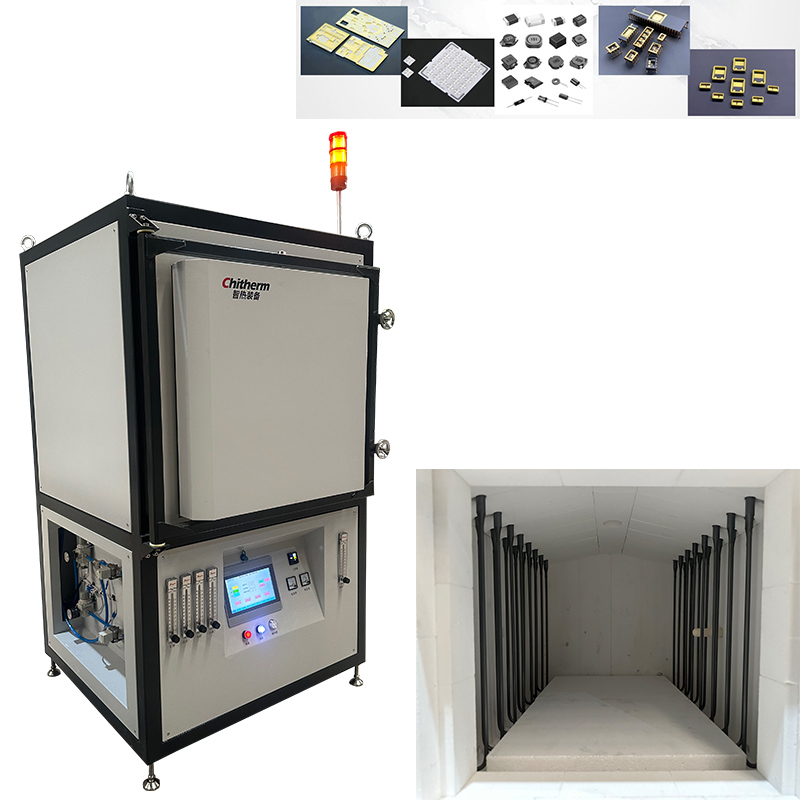

950kg Safety Protections High Temperature Box Furnace

Name: 950kg Safety Protections High Temperature Box Furnace
Brand: Hefei Chitherm Equipment Co., Ltd
SKU: HBF52-17NO
Availability: InStock

Brand Name:	Chitherm
Model Number:	HBF52-17NO
MOQ:	1
Price:	Negotiation
Delivery Time:	90 work days
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Specification 1770*2150*1250mm(W*H*D)Wooden Packaging

Supply Ability:

50 Sets/Year

Highlight:

Safety Protections High-Temperature Box Furnace

950kg High-Temperature Box Furnace

Product Description

950kg Safety Protections High-Temperature Box Furnace

Basic Equipment Information

Model:

HBF52-17NO High-Temperature Box Furnace

Application Fields:

High-temperature sintering processes for ITO targets, microwave ferrites, magnetic materials, electronic components, ceramic filters, and similar materials.

Core Technology & Performance Parameters

Temperature Control:

Rated Temperature: 1650°C
Max Temperature: 1700°C
Temperature Stability: ±1°C (PID auto-tuning)
Temperature Uniformity: ±5°C (tested at 1650°C for 2 hours, empty furnace)
Thermocouple Type: Type B (single-point measurement at side center)
Programmable Segments: 4×16 segments

Heating System:

Heating Elements: U-shaped silicon molybdenum rods
Heating Rate: RT→1200°C ≤5°C/min, 1200→1700°C ≤2°C/min
Max Heating Power: 25kW
Idle Holding Power: ≤10kW

Furnace Chamber & Atmosphere:

Effective Dimensions: 350×300×500mm (W×H×D)
Atmosphere: Air or oxygen (requires matching gas supply)
Exhaust Chimney: Top-mounted auto-opening/closing design

Safety Protections:

Over-temperature & thermocouple failure alarm (audible/visual)
Over-temperature power cutoff

Other Configurations:

Surface Temperature Rise: ≤40°C
Weight: ~950kg
Dimensions: 1620×1960×1220mm (W×H×D)
Color: Light gray

Operating Conditions

Environmental Requirements:

Temperature: 0-40°C
Humidity: ≤80%RH
No corrosive gases/strong air currents

Gas Supply Requirements:

Clean dry compressed air: 0.2-0.4MPa, 2-6m³/h
High-purity oxygen: Same parameters

Installation Requirements:

Floor: Level, vibration-free, load-bearing >300kg/m²
Power: 3-phase 5-wire, ≥34KVA, 220/380V 50Hz
Space: 2000×3000×1500mm (recommended area >3m²)

Key Precautions

Uniformity based on empty furnace tests; verify parameters after loading
Program stepwise heating/cooling to avoid equipment damage
Set over-temperature alarms per process requirements
Strictly prohibit oils/organic solvents in oxygen environments
Regularly inspect silicon molybdenum rods (e.g., cracks/resistance changes)
Test chimney auto-switch periodically to prevent vent blockage

Delivery List

Item	Note	QTY
Basic Compositions	Furnace	1 PC
Certificates of Inspection	Furnace and major purchased components	1 Set
Technical Documents	Furnace specifications, technical documents of major purchased components	1 Set
Key Parts	Heating Elements (MoSi2)	1 Set
Thermocouple	THERMOWAY, B Type	1 PC
Temperature Controller	CHINO	1 Set
Monitor	Proface 10" touch screen	1 Set
Spares	Heating Elements (MoSi2)	1 PC
