| Brand Name: | Chitherm |
| Model Number: | HBF52-17NO |
| MOQ: | 1 |
| Price: | Negotiation |
| Delivery Time: | 90 work days |
| Payment Terms: | T/T,L/C |

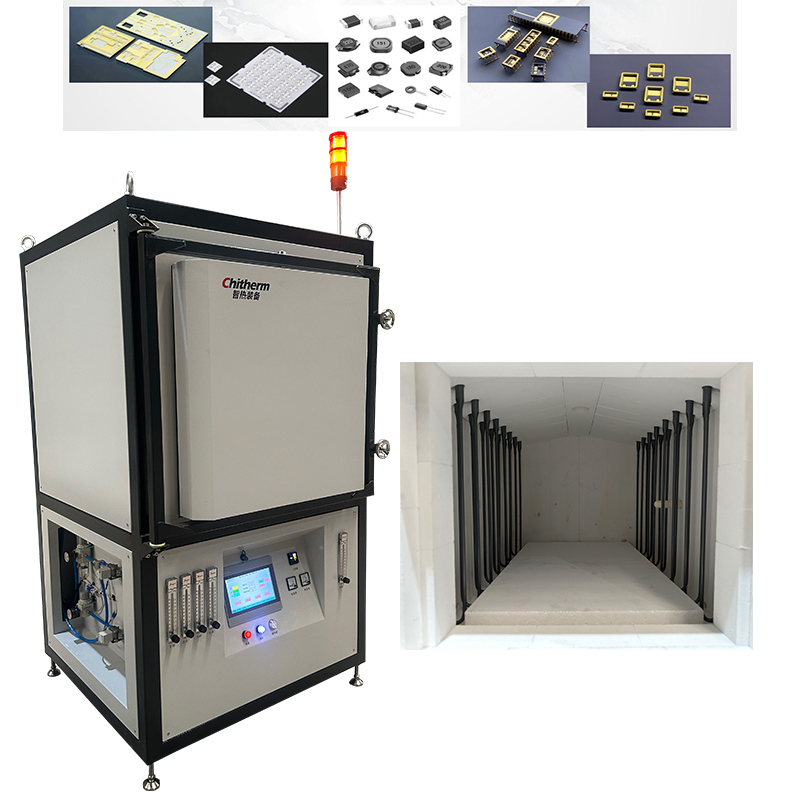

Model: HBF52-17NO High-Temperature Box Furnace
Application Fields: Suitable for high-temperature sintering processes of ITO targets, microwave ferrites, magnetic materials, electronic components, ceramic filters, etc. Supports air/oxygen atmosphere environments.
| Parameter | Specification |
|---|---|
| Rated/Max Temperature | 1650°C (rated) / 1700°C (peak) |
| Effective Chamber Size | 350×300×500mm (W×H×D) |
| Heating Element | U-shaped silicon molybdenum rods |
| Temperature Control Performance |
|
| Temperature Sensor | Type B thermocouple (single-point control at side center) |
| Temperature Control Program | 4×16 programmable segments |
| Atmosphere System | Supports air/oxygen, top automatic chimney (with cover) |
| Safety Protection | Over-temperature and thermocouple failure alarms with sound/light, over-temperature power cutoff |
| Power Parameters |
|
| Surface Temperature Rise | ≤40°C |
| Equipment Weight | ≈950kg |
| Dimensions | 1620×1960×1220mm (W×H×D) |
| Color | Light gray |
Environmental Conditions:
Gas Supply Requirements:
Ventilation System: Must connect to user exhaust system with extraction capacity >10m³/h (non-contact connection)
Floor Requirements: Level, vibration-free, load-bearing ≥300kg/m²
Electrical Conditions: 3-phase 5-wire system, capacity ≥34KVA, voltage 220/380V, frequency 50Hz
Installation Space: Minimum area: 2000×3000×1500mm (W×H×D), recommended space >3m²
| Item | Note | QTY |
|---|---|---|
| Basic Compositions | Furnace | 1 PC |
| Certificates of Inspection | Furnace and major purchased components | 1 Set |
| Technical Documents | Furnace specifications, technical documents of major purchased components, etc | 1 Set |
| Key Parts | Heating Elements (MoSi2) | 1 Set |
| Thermocouple | THERMOWAY, B Type | 1 PC |
| Temperature Controller | CHINO | 1 Set |
| Monitor | Proface 10" touch screen | 1 Set |
| Spares | Heating Elements (MoSi2) | 1 PC |
Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces.
Our product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics.
We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
