| Brand Name: | Chitherm |
| Model Number: | HBF105-14 |
| MOQ: | 1 |
| Price: | Negotiable |
| Delivery Time: | Customized |
| Payment Terms: | Customized |
| Attribute | Value |
|---|---|
| Range of Applications | Industrial |
| Type | Electric Holding Furnace |
| Usage | Steel Molding |
| Fuel | Electric |
| Effective Chamber Dimensions | 400*330*800mm(W*H*D) |
| Setter Plate | Corundum-Mullite |
| Transport Package | Wooden Package |
| Specification | 850*900*1200mm (W*H*D) |
| Trademark | Chitherm |
| Origin | China |
| HS Code | 8514101000 |
| Supply Ability | 50 Sets/Year |
| Customization | Available |
| Certification | ISO |
| Place Style | Vertical |

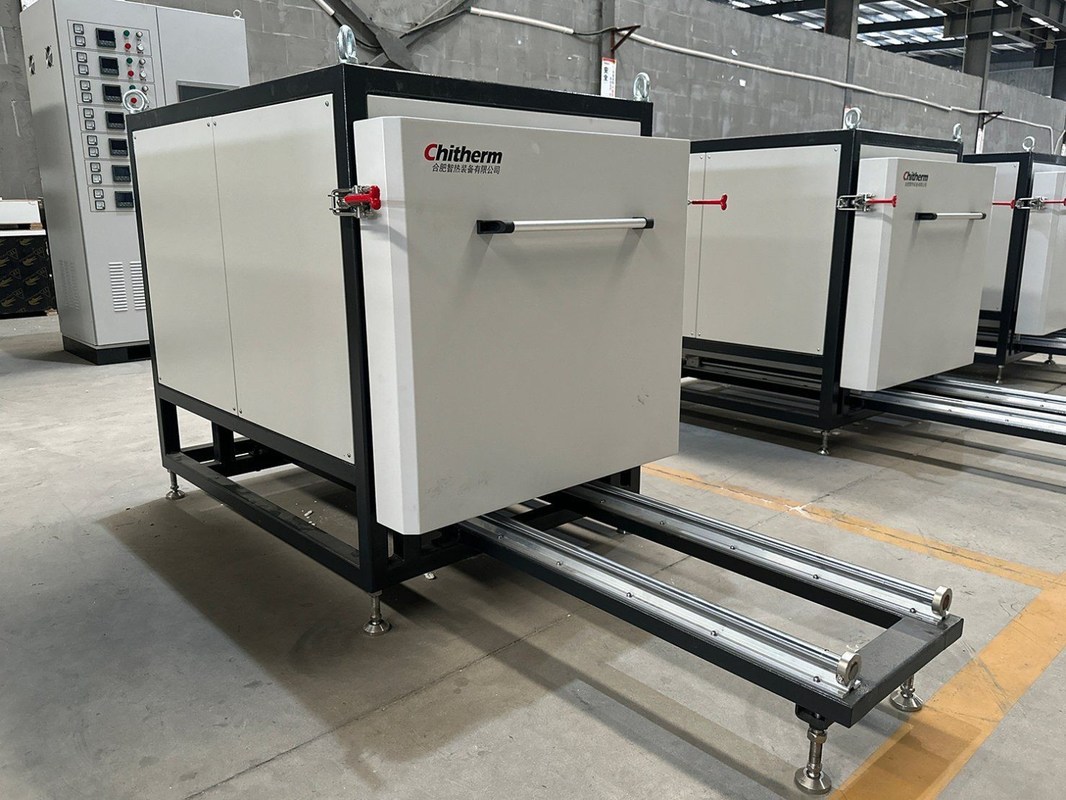

The HBF105-14 Type Sintering Furnace is a vertical electric holding furnace designed for high-temperature treatment at 1500°C. It features silicon molybdenum rods that offer excellent resistance to acids and alkalis, ensuring good temperature uniformity and simple operation. Ideal for laboratory use and small-batch production processes.
| Parameter | Specification |
|---|---|
| Product Model | HBF105-14 Type Sintering Furnace |
| External Dimensions | 850 × 900 × 1200mm (W×H×D) |
| Effective Chamber Size | 400 × 330 × 800mm (W×H×D) |
| Rated Temperature | 1300°C |
| Maximum Temperature | 1500°C |
| Heating Element | Silicon Molybdenum Rod |
| Number of Heating Zones | 1 |
| Maximum Heating Power | 23kW |
| Cooling Method | Natural Cooling with the Furnace |
| Heating Rate | ≤10°C/min |
| Power Supply | Capacity greater than 30kVA, three-phase five-wire 220/380V, 50Hz |
| Item | Specifications | Quantity | Notes |
|---|---|---|---|
| Kiln Main Unit | Primary heating system | 1 set | Core equipment for thermal process |
| Setter Plate | Material: Corundum-Mullite | 1 set | High-temperature resistant carrier |
