High Temperature Box Furnace
Created with Pixso. Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating

Controlled Atmosphere Melting Electric Box Furnace For Ceramic Sintering Heating

Brand Name: Chitherm
Model Number: MBF40-11N
MOQ: 1
Price: Negotiable
Delivery Time: Customized
Payment Terms: Customized
Detail Information
Place of Origin:
China
Range Of Applications:
Industrial
Type:
Electric Holding Furnace
Usage:
Ceramic Sintering
Fuel:
Electric
Atmosphere:
Air/Nitrogen
Effective Chamber Dimensions:
330*200*660mm(W*H*D)
Thermocouple Type:
N
Transport Package:
Wooden Packaging
Specification:
1150*1970*1460mm(W*H*D)
Trademark:
Chitherm
Origin:
China
HS Code:
8514101000
Supply Ability:
50 Sets/Year
Customization:
Available
Certification:
ISO
Place Style:
Vertical
Packaging Details:
Customized
Supply Ability:
Customized
Highlight:

Atmosphere electric box furnace

,

Ceramic electric box furnace

,

Ceramic Sintering controlled atmosphere heat treatment furnace

Product Description
Controlled Atmosphere Melting High Temperature Box Furnace For Ceramic Sintering Heating
Product Specifications
Attribute Value
Range of Applications Industrial
Type Electric Holding Furnace
Usage Ceramic Sintering
Fuel Electric
Atmosphere Air/Nitrogen
Effective Chamber Dimensions 330*200*660mm(W*H*D)
Thermocouple Type N
Transport Package Wooden Packaging
Specification 1150*1970*1460mm(W*H*D)
Trademark Chitherm
Origin China
HS Code 8514101000
Supply Ability 50 Sets/Year
Customization Available
Certification ISO
Place Style Vertical
Product Description

1100°C Mbf40-11n Atmosphere Box Furnace Melting Furnace 330mm × 200mm × 660mm for Ceramic Sintering Heating

Applications

The industrial kiln is primarily utilized for the sintering processes of lithium battery cathode and anode materials, and is also applicable to the sintering of magnetic materials, electronic components, electronic ceramics, and related products.

Technical Specifications
  • Rated Temp: 200-1100°C
  • Max Temp: 1150°C
  • Effective Dimensions: 330 × 200 × 660mm (W×H×D)
  • Heating Method: Ceramic tube-encased silicon carbide rod
  • Process Atmosphere: Air or Nitrogen
  • Temperature Control Stability: ±1°C with PID parameter auto-tuning
  • Temperature Uniformity: Better than ±5°C
  • Thermocouple: Type N
  • Temperature Control Points: Upper and lower points with single measurement point in middle
  • Process Steps: 9 steps
  • Oxygen Content Detection: Micro-oxygen analyzer for real-time monitoring
  • Exhaust: Top-mounted chimney with manual exhaust volume adjustment
  • Alarm System: Sound and light alarms for over temperature, thermocouple failure
  • Max Heating Power: ≤25kW
  • Surface Temperature Rise: ≤40°C
  • Furnace Dimensions: 1150×1970×1460mm (W×H×D)
  • Appearance Color: Light gray

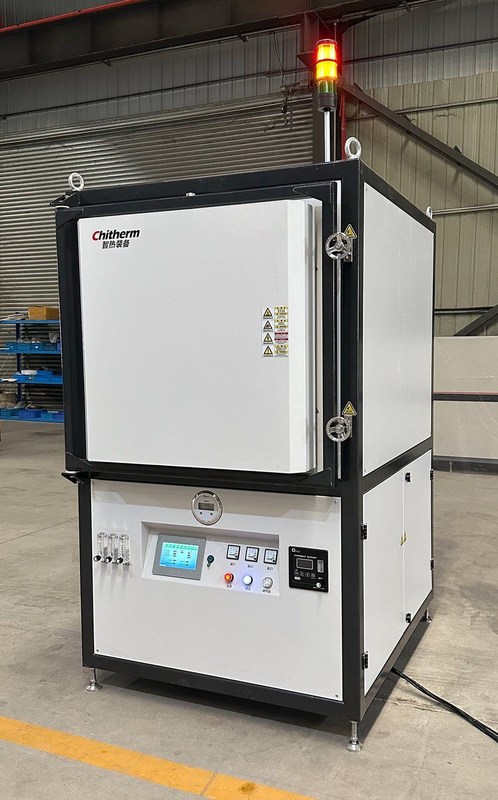

1100°C Mbf40-11n Atmosphere Box Furnace with dimensions 330mm*200mm*660mm
Key Components
  1. Furnace frame
  2. Chimney
  3. Furnace chamber
  4. Furnace door
  5. Heating element
  6. Sagger (ceramic container used in kilns)
  7. Roller bar (for moving ceramics during firing)
Delivery List
Item Note QTY
Basic Compositions Furnace 1 Unit
Certificates of Inspection Furnace and major purchased components 1 Set
Technical Documents Furnace specifications, technical documents of major purchased components 1 Set
Key Parts Heating Elements (ceramic tube-encased silicon carbide rod) 1 Set
Temperature Controller Azbil 1 Set
Touch screen   1 Set
Spares Silicon carbide rod 2 PC
Facility Requirements
  • Environmental conditions: Temperature 0-40°C, humidity ≤80% RH, no corrosive gas, no strong airflow disturbance
  • Process air conditions: 99.999% purity nitrogen, pressure 0.2-0.4Mpa, gas consumption 4-12m³/h
  • Ventilation system: Non-contact access to user pumping system, capacity >15m³/h
  • Power conditions: Capacity >35kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz
  • Installation site: 2500mm×2000mm×3000mm (W×H×D), area >5m²
1100°C Mbf40-11n Atmosphere Box Furnace with dimensions 330mm*200mm*660mm
